Description

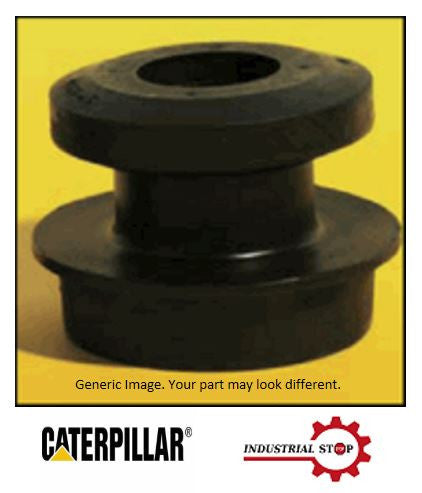

xIsolation mounts are used to attach and position systems, accommodate displacement, and isolate components from the surrounding structure (vibration, shock, noise).
Mount Type: Two-Piece - Non-Symmetric
Head Outside Diameter (mm): 88.9
Head Outside Diameter (in): 3.5
Head Thickness (mm): 22.3
Head Thickness (in): 0.88
Pilot Outside Diameter (mm): 58.4
Pilot Outside Diameter (in): 2.3
Inside Diameter (mm): 23.8
Inside Diameter (in): 0.94
Mount Height (mm): 73.1
Mount Height (in): 2.88
Pad Height (mm): 22.3
Pad Height (in): 0.88
Bonded Sleeve: Yes
Standard Bolt Size: M20
