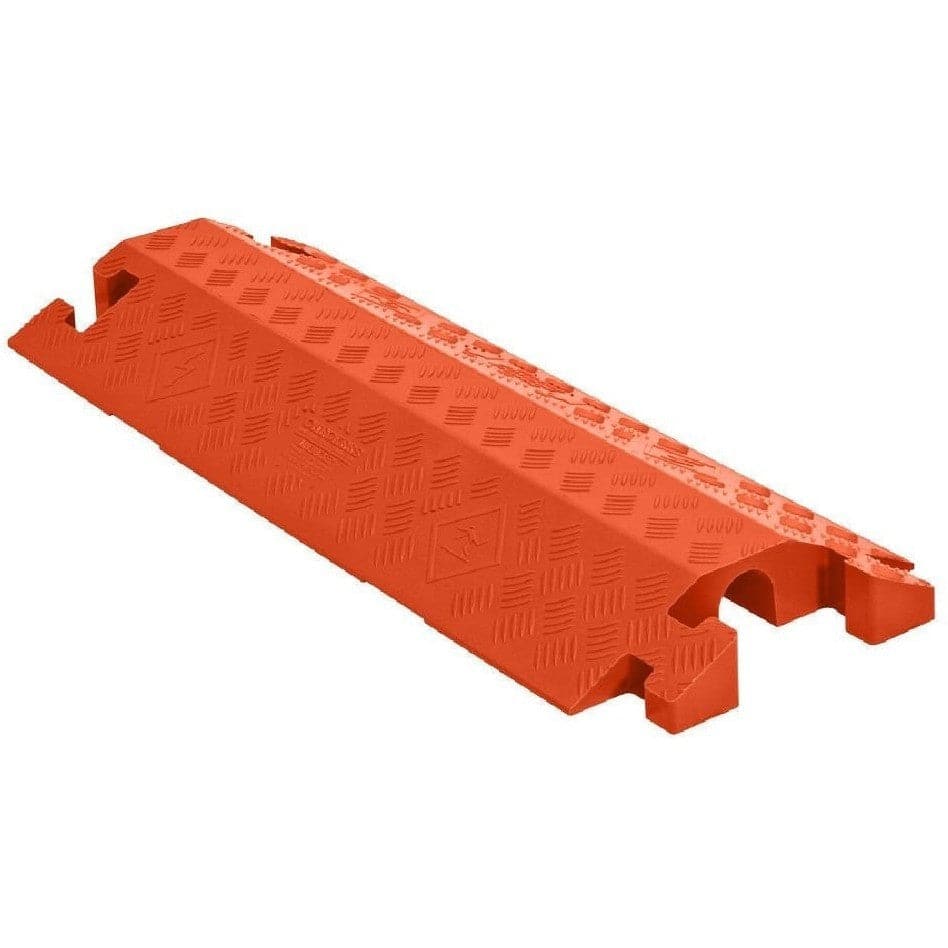

Checkers 1 Channel Drop Over - 7.7-Tonne Capacity Cable Protector

Australian-made T-Connector 1-Channel Drop Over Cable & Conduit Protector with 7.7t Weight Capacity from Checkers

Checkers 1 Channel Drop Over Cable Protector with 7.7 load capacity serves as a shield for ground-level pipes, conduits, power cords and hose lines from harsh environments, and vehicular and pedestrian traffic.

It covers the exposed lines from above but does not prevent abrasion from below. The body of the drop-over protector boasts a load capacity of 200kg. Features 5 bar tread design for maximum traction and warning symbols moulded into its body.

Its heavy-duty T-shaped connectors allow extending length whenever the need arises.

Owing to its great load capacity, this drop over is a perfect crossing point for high-volume vehicular traffic and pedestrian traffic and perfect for use in other medium-to-large commercial and industrial applications.

Available in orange and black; buy-in alternate colours for aesthetic and high-visibility configuration.

Features and Benefits

• Checkers 1 Channel Drop Over Cable Protector
• Load capacity: 3.85 tonnes per tyre load( 7.7-tonne axle load)
• Shields ground level pipes, conduits, and power cords from traffic
• 5 bar tread design offers optimum traction
• T-shaped connectors for extending the length
• Moulded-in safety symbols
• Highly visible orange or yellow colour

Specifications

• Length (mm): 914.4
• Width (mm): 361.9
• Height (mm): 76.2
• Channel Width (mm): 57.2
• Channel Height (mm): 57.2
• Weight (kg): 8.6
• Load Capacity (kg): 3.85 tonnes per tyre load(7.7-tonne axle load)
• Colour: Orange
• Available in Yellow on a pre-order basis
